Head Set and Bottom Bracket Press Tool

The Large Press System is designed to install press fit bottom brackets and headsets.

The Press Body is machined from 6061-T651 Aluminum billet to exacting tolerances then anodized to decrease wear. The body is anodized a Matte Black.  The ergonomic handles are machined from 300 series stainless steel.

 The 1/2” ACME Threaded Rod[s] are 12.0” (305mm) or 15.0” (380mm) in length.









Bottom Bracket Alignment Adapter

The Bottom Bracket Alignment Adapter - A lot of mechanics press in one bottom bracket bearing assembly at a time. Well the first assembly is always the hardest because the bottom bracket press tool just presses on the face of the BB Shell. So the alignment adapter centers the tool by registering inside the bottom bracket shell. The alignment adapter fits 41mm (BB86/92), 42mm (BB30) & 46mm (PF30) bottom bracket shells.

The Bottom Bracket Alignment Adapter is machined from 6061-T651 Aluminum billet to exacting tolerances then anodized to decrease wear. The Adapter is compatible with the Park Headset Press (HHP-2) or any press with a .625"(15.9mm) Diameter Shaft.

Fox Fork Air Spring & Damper Removal Tools

The Fox Fork Air Spring & Damper Removal Tools are machined from 6061-T651 Aluminum billet to exacting tolerances then anodized to decrease wear.

::Fox Fork – 32mm damper-side / 32, 34, 36, 40mm air-spring (2002 – 2018)

::Fox Fork – 34, 36, 40mm damper-side (2005 – 2018)

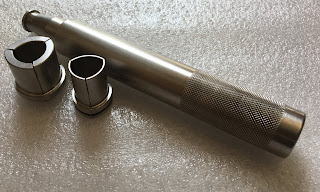

Press Fit Bottom Bracket Removal Tool

The Press Fit Bottom Bracket Removal Tool – Removes Shimano, SRAM, Race Face & Chris King Bottom Brackets in BB30, PF30, BB90/95 and BB86/92 formats. This tool is designed to remove press fit bottom brackets without damaging the BB or the frame. The driver is 6-1/2” (165mm) in length so it will work with Fat Bikes and DH Bikes.  The tool includes 24mm and 30mm removal collet.

The Press Fit Bottom Bracket Removal Tool is machined from 300 series stainless steel which creates a shop quality tool.

Bottom Bracket Removal Tool Kit



Close Up View

Chris King PF30

Chris King PF30

Bearing Press System

The Bearing Press System installs the following sizes: 6000, & 6900, (10mm ID); 6001, 6801, & 6901 (12mm ID); 1526, 6002, 6802, & 6902 (15mm ID); 6003, 6803, & 6903 (17mm ID); 6804, & 6904 (20mm ID); 2437 (24mm ID); 6805 (25mm ID); 6806 (30mm ID).

The Bearing Press Handles are machined from 6061-T651 Aluminum billet to exacting tolerances then anodized to decrease wear. Ergonomic handles to ensure consistent bearing pressure while reducing hand fatigue. The 3/8-12 ACME rod.


SPECIFICATIONS:

•Anodized and Laser Etched for part identification.

•Adapter’s pilot on the Bearing ID and pushes on the Bearing OD to prevent damage during installation.

•Ergonomic Handle ensures consistent bearing pressure while reducing hand fatigue.

•Includes standoffs for frame linkage.
